BRAND | Käfer |
Product | 9073-2 |
Internal code | 4364516 |
Custom code | 90178090 |

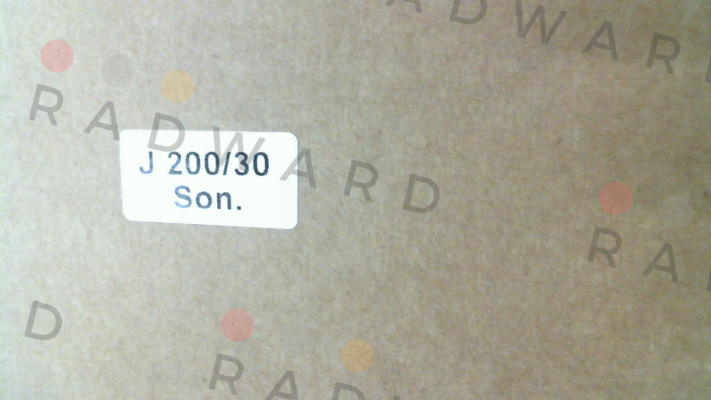

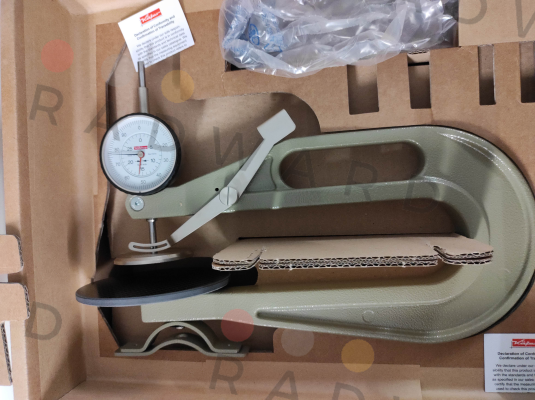

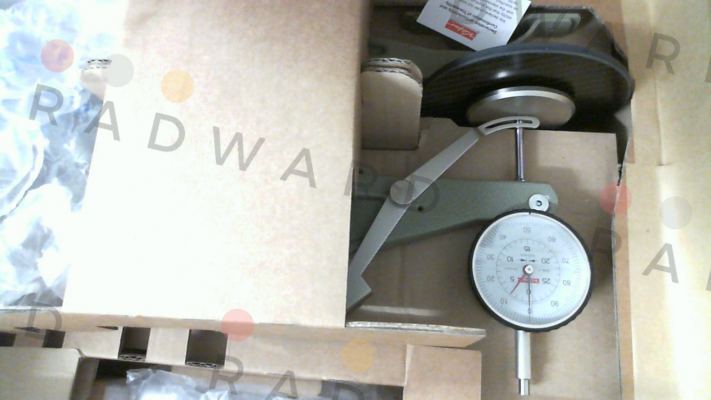

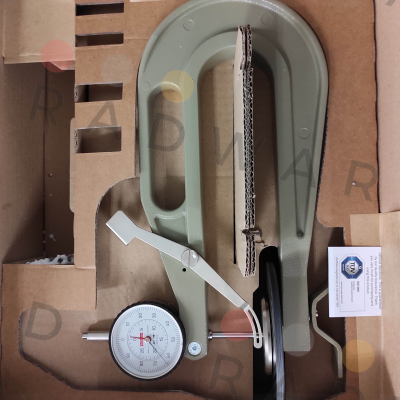

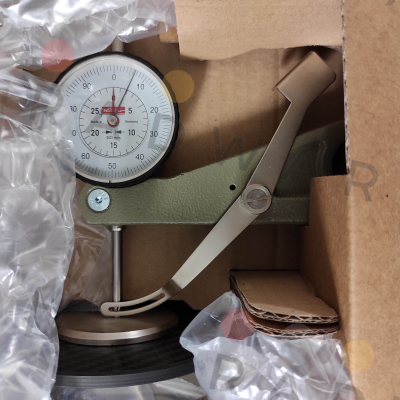

Technical specification | 20304 nonwoven thickness gauge thickness gauge J 200/30 in special version, Measuring instrument complies with DIN EN ISO 9073-2 (edition 1997/02) test method A for normal nonwovens (part 5.1), - with device bracket 3.1674 in special version with 20 mm forward offset tapped hole for the stand up hangers, - with reinforced mounting hook n.z. 030217/7, - play balance spring 5.1843 (wound up 1.5 times) - without leg spring for the vent lever - with top measuring insert, dim. 56.5 mm, made of metal n.z. 731131/1-4, - with screw 8.0032 for the upper measuring insert - with “bottom measuring insert, complete” dim. 108 mm off Carbon n.z. 731131/2-10, scale division value 0.01 mm, ironing depth 200 mm, measuring pin travel range approx. 28.5 mm, initial pressure approx. 0.5 kPa (when displayed = 0 mm), final pressure approx. 0.56 kPa (when displayed = 20 mm), with Beetle print with measuring insert mould with Beetle print |
Discover the superior quality and performance of the Käfer 9073-2 with RADWARD LTD in United Kingdom . Whether you are looking for reliability or efficiency, this product meets all your industrial needs.
The 9073-2 is designed to provide optimal performance and durability in various applications. Known for its high-quality construction and innovative features, it is a preferred choice for professionals.
Key Features of 9073-2 :
At RADWARD LTD , we offer the 9073-2 at competitive prices and with the fastest delivery times across United Kingdom . Our expert team is ready to assist you with all your inquiries and provide tailored solutions to meet your specific needs.
Why Choose RADWARD LTD ?
Get Your Quote Today! Ready to enhance your operations with the 9073-2 ? Contact us now for a personalized quote. Fill out the form below or send us an email with your inquiry. Let us help you make a cost-effective, quality-driven choice for your business.
Important Notice: While we supply Käfer products, RADWARD LTD is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
