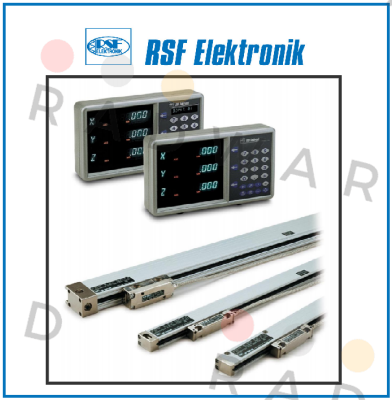

Buy C0T460212216 from Rsf Elektronik in United Kingdom

AUSFUHRUNG WIE SER.-NR: 18-5093 8/5X

Subdividing Electronics ZE-5

BH4355040845, MSA371.63 KP

Incremental length measuring scanning unit MSA measurement system KP 371.63 Interval 20 microns, 5-fold Accuracy ± 5 microns / m RI 50: Distance-coded Supply: +5 V Output: rechteckf. Signals via Line Driver 5 V CC 408: K1, 1 m cable in Metallschl, L121. Measuring length 920 mm

C0T460212222

Pos. 01 measuring system MSA 650.24;  interval 40 microns;  Accuracy ± 10 microns / m;  RI 02: center of the gauge length;  Supply: +12 V;  Output: rechteckf. Signals 12 V;  CC 122: K1, 3 m Metallgefl cable, plug L70;.  gauge length 370 mm;

D22100005480

MSA 654.23 measurement system

D538D0199978

Pos. 01 Incremental length measuring scanning MSA350.23  measuring system MSA 350.23 lt. Datasheet D538D  interval 20 microns  Accuracy ± 10 microns / m  RI 01: 20 mm from left  Supply: + 10-30 V  Output: rechteckf. signals 10-30V  CC 999: Cable / lt plug data sheet.  measuring length 180 mm

D627A99C3183

ML:110mm. MSA671.24

D649D00D0901 MEßSYSTEM MSA 650.24 LT. DATENBLATT D649D

Interval 40 microns;  Accuracy ± 10 microns / m;  without reference mark;  Supply: +12 V;  Output: rechteckf. Signals 12 V;  CC D09: K1, 0.3 m cables, connectors FB51;  occupancy lt D522129.  gauge length 50 mm;

DG118

EH43507A4739 MSA 690.63-2

(Incremental length measuring MSA690.63 MSA measurement system 690.63-2 Interval 20 microns, 5-fold Accuracy ± 5 microns / m RI 07: 35 mm from left and right Supply: +5 V Output: rechteckf. Signals via Line Driver 5 V CC A47: K1, 3 m UHF cable connector LD15 Occupancy lt Z. 44,050 Switching signals: open collector - active high Measuring length 770 mm with short-legged sealing lips)

INKREMENTALER DREHGEBER DG 151

INKREMENTALES LÄNGENMEßSYSTEM ABTASTEINHEIT MSA654.24

Measuring system MSA 654.24  interval 40 microns  Accuracy ± 10 microns / m  RI 02: center of the gauge length  Supply: +5 V  Output: rechteckf. Signals via Line Driver 5 V  CC 403: K2, 0.5 m in cable Metallschl, SA120.  gauge length 220 mm

INKREMENTALES LÄNGENMEßSYSTEM MSA665.B3

MSA measurement system 665.B3  interval 20 microns  Accuracy ± 5 microns / m  RI 02: center of the measuring length  supply: ± 12 V  Output: Sinusoidal. Signals 16 Vss  CC 903: K2, 0.5 m Metallgefl cable, plug L70.  gauge length 220 mm

MEßSYSTEM MSA

Datasheet D2210 Gauge length 72 mm; interval 20 microns;

MEßSYSTEM MSA

Datasheet D2210; Gauge length 152 mm; Interval 20 microns;

MSA 373.65-0

MEßSYSTEM MSA 650.24

 interval 40 microns;  Accuracy ± 10 microns / m;  RI 02: center of the gauge length;  Supply: +12 V;  Output: rechteckf. Signals 12 V;  CC 122: K1, 3 m Metallgefl cable, plug L70;.  gauge length 1040 mm;

MEßSYSTEM MSA 650.24 (CODE : C0T460212229)

 measuring system MSA 650.24  interval 40 microns  Accuracy ± 10 microns / m  RI 02: center of the gauge length  Supply: +12 V  Output: rechteckf. Signals 12 V  CC 122: K1, 3 m Metallgefl cable, plug L70.  measuring length 520 mm

Meßsystem MSA 670.63

Measuring system

MS 20

MS 50.66 M

Scanning MS50.66 (ID: 43854030)  Interval 200 microns, 5-fold  with reference mark  Supply: +5 V  Output: rechteckf. Signals via Line Driver 5 V  CC A88: 9 m cables, connectors L120  RSF art. No. LH46001A8800

MS 50.76M

 head MS lt 50.76 M. Datasheet D279B  interval 200 microns, 10-fold  without reference mark  Supply: +5 V  Output: rechteckf. Signals via Line Driver 5 V  CC E17: 1.3 m cables, connectors KD9  occupancy lt Z:. 44 729 B

MS 50-25G

MSA 555

ruler

MSA 650.23 / C02360212237

(Encoder,grating pitch 20 µm;  accuracy ±10 µm/m;  RI 02: center of the measuring length;  supply: +5 V;  output: square wave signals 5 V;  CC 122: K1, 3 m cable with braiding, conn. L70;  measuring length 720 mm;)

MSA650.24 / D649D00G2487

Incremental length measurement system

MSA 650.63 (Art.Nr.: C0436G501405)

Incremental length measuring system MSA650.63

MSA 654 A3

ML 920mm R102 Interval 20 microns Accuracy ± 5 microns / m

MSA 654.23

MSA 654.23 / CC 049

(Signals rechteckf 5 V CC 049: measurement system, interval 20 microns; Accuracy ± 10 microns / m; without reference mark;:; +5 V supply output. K1, 2 m cables, connectors L70; gauge length 72 mm)
