Buy CPTDINAV53HA1AX from Carlo Gavazzi in United Kingdom

BRAND Carlo Gavazzi

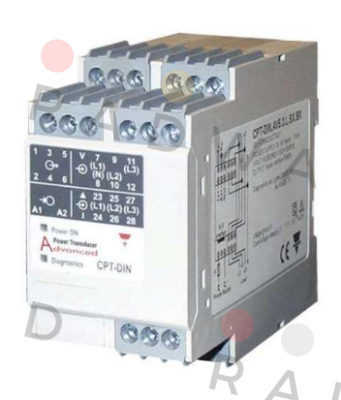

Product CPTDINAV53HA1AX
Description Selected parameters FUNCTION Transducers MOUNTING DIN
Internal code 239652
Weight 2.5
Technical specification Energy Management Compact Power Transducer Type CPT-DIN “Advanced version” • One digital output and RS485 communication port (2 wires only) • 16 freely configurable alarms with OR/AND logic linkable to up to 2 digital outputs • RS422/485/RS232 communication port (MODBUS- RTU), iFIX SCADA compatibility Product Description • Class 1 (kWh), Class 2 (kvarh) • Accuracy ±0.5 F.S. (current/voltage) • Compact power transducer • Instantaneous variables data format: 4 DGT • Energies data format: 8+1 DGT • System variables and phase measurements: VLL, VLN, A, Amax, An, Admd,Admd max, VA, VAdmd, VAdmd max, W, Wdmd, Wdmdmax, WL1, WL2, WL3max, var, PF, PFL1, PFL2, PFL3 min, Hz, ASY • Four quadrant power measurement • Energy measurements: total and partial kWh and kvarh (according to EN62053-21 and EN62053-23) • Hour counter (5+2 DGT) • TRMS meas. of distorted sine waves (voltages/currents) • Universal power supply: 90 to 260 VAC/DC, 18 to 60 VAC/DC • Dimensions: 45x83.5x98.5mm • Voltage asymmetry, phase sequence, phase loss control • Up to 3 analogue outputs (20mA or 10VDC) • 2 digital outputs How to order CPT-DINAV5 3 H A3 AX 3-phase compact power transducer. Particularly rec- ommended for the measure- mentofthemain electrical variables also on board of machines. Housing for DIN-rail mount- ing, with up to 3 analogue outputs, or RS485 communi- cation port or alarm outputs or “Dupline” bus. Parameters programmablebymeans of CptASoft. Model Range code System Power supply Outputs Option How to order CptASoft-kit Type Selection CptASoft: software to program the working parameters of the transducer and to read the energies and the instanta- neous variables. The kit includes the communication cable. Range codes AV5: 400/690VL-L/1/5(6)AAC VL-N: 185 V to 460 V VL-L: 320 V to 800 V AV6: 120/208VL-L/1/5(6)AAC VL-N: 45 V to 145 V VL-L: 78 V to 250 V Phase current: 0.01A to 6A Neutral current: 0.05A to 6A Inputspecifications System 3 :1-2-3-phase, balanced/ unbalanced load, with or without neutral 1 :1-3-phase, balanced load (*) (*) Note: the 3-phase balanced load measurement requires the connection of the neutral accord- ing to fig. 15 and 16 in the final part of this document. Outputs R2: 2-relay outputs O2: 2-open collector outputs A1: 1-analogue output: 0/4 to 20mA DC A3: 3-analogue outputs: 0/4 to 20mA DC V1: 1-analogue output: 0 to 10V DC V3: 3-analogue outputs: 0 to 10V DC S1: RS485/RS422 port S2: RS232 port DB:Dupline bus Options AX: advanced functions Power supply L:18 to 60 VAC/VDC H: 90 to 260 VAC/VDC Rated inputsSystem type: 3 Current3 (internal current transformers) Voltage4 System type: 1 Current1 (internal CT) Voltage2 Accuracy (RS485) Imax: 6A, Vmax: 400VLN(690VLL), (@25°C ±5°C, R.H. ≤60%)In: 5A, Vn: 230VLN(400VLL) CT: 1, VT (PT): 1 Range accuracy: 0.02In to 0.05In Current ±(0.5%FS) or ±(1%RDG+2DGT) Neutral current±(2%RDG+3DGT) Phase-phase voltage ±(0.5%RDG+2DGT) Phase-neutral voltage ±(0.5%RDG+2DGT) Active and Apparent power,±(1.5%RDG+3DGT) Reactive power ±(3%RDG+3DGT) Range accuracy: 0.05In to Imax Current ±(0.5%RDG+2DGT) Neutral current±(1%RDG+3DGT) Phase-phase voltage ±(0.5%RDG+2DGT) Phase-neutral voltage ±(0.5%RDG+2DGT) Active and Apparent power,±(1%RDG+3DGT)

         Discover the superior quality and performance of the Carlo Gavazzi CPTDINAV53HA1AX with RADWARD LTD in United Kingdom . Whether you are looking for reliability or efficiency, this product meets all your industrial needs.

The CPTDINAV53HA1AX is designed to provide optimal performance and durability in various applications. Known for its high-quality construction and innovative features, it is a preferred choice for professionals.

Key Features of CPTDINAV53HA1AX :

  • High Performance: Engineered to deliver exceptional results.
  • Durable Construction: Built with high-quality materials for long-lasting use.
  • Innovative Design: Incorporates the latest technology for enhanced efficiency.
  • Cost-Effective: Offers great value for money with competitive pricing.

At RADWARD LTD , we offer the CPTDINAV53HA1AX at competitive prices and with the fastest delivery times across United Kingdom . Our expert team is ready to assist you with all your inquiries and provide tailored solutions to meet your specific needs.

Why Choose RADWARD LTD ?

  • Expert Assistance: Get help from our knowledgeable team for all your product-related questions.
  • Competitive Prices: We offer some of the best prices in the market.
  • Fast Delivery: Benefit from our efficient delivery network for quick turnaround times.
  • Customer Satisfaction: Our commitment to customer service ensures a great buying experience.

Get Your Quote Today! Ready to enhance your operations with the CPTDINAV53HA1AX ? Contact us now for a personalized quote. Fill out the form below or send us an email with your inquiry. Let us help you make a cost-effective, quality-driven choice for your business.

Important Notice: While we supply Carlo Gavazzi products, RADWARD LTD is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.

Contact us for request
