BRAND | Tapflo |
Product | CTIDD-40 |

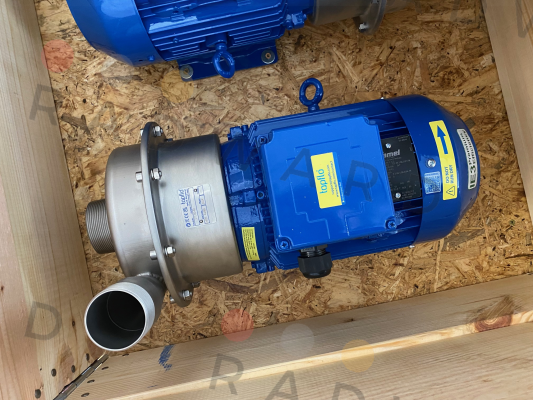

Description | CTIDD-40 industrial centrifugal pump |
Internal code | 4971460 |
Technical specification | Technical description: Maximum flow rate 45 m³/h for water Max. delivery pressure 21.5 mWS Max. system pressure 10 bar Max. solid size 6 mm Operating point, see conveyor pit Suction height not self-priming Max. temperature 90°C Max. viscosity 200 mPas Case parts in contact with the product, 316L, glass-beaded 316L stainless steel impeller Single-acting mechanical seal: ceramic/graphite/EPDM EPDM O-ring housing Suction connection 2 1/2 “external thread Pressure connection 2 “external thread Drive: 3-phase motor 400/690 V, 50 Hz, 4.0 kW, IP 55, IE3 Speed 2900 rpm at 50 Hz |
Discover the superior quality and performance of the Tapflo CTIDD-40 with RADWARD LTD in United Kingdom . Whether you are looking for reliability or efficiency, this product meets all your industrial needs.
The CTIDD-40 is designed to provide optimal performance and durability in various applications. Known for its high-quality construction and innovative features, it is a preferred choice for professionals.
Key Features of CTIDD-40 :
At RADWARD LTD , we offer the CTIDD-40 at competitive prices and with the fastest delivery times across United Kingdom . Our expert team is ready to assist you with all your inquiries and provide tailored solutions to meet your specific needs.
Why Choose RADWARD LTD ?
Get Your Quote Today! Ready to enhance your operations with the CTIDD-40 ? Contact us now for a personalized quote. Fill out the form below or send us an email with your inquiry. Let us help you make a cost-effective, quality-driven choice for your business.
Important Notice: While we supply Tapflo products, RADWARD LTD is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
