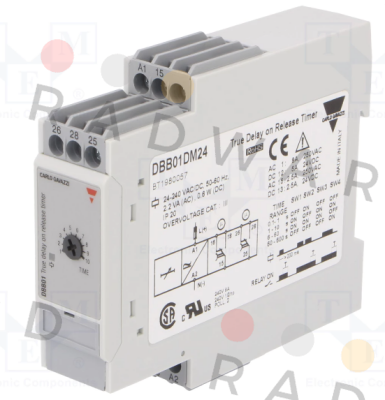

Buy DBB02CM24 from Carlo Gavazzi in United Kingdom

BRAND	Carlo Gavazzi
Product	DBB02CM24
Description	FUNCTION True delay on release OUTPUT SIGNAL 1
Internal code	247412
Weight	1
Technical specification	True delay onrelease Types DBB02, PBB02 • Time range 60 s to 10 h - battery powered • 3 time ranges selectable by DIP-switches • Knob-adjustable time setting • Automatic start after drop-out of power supply • Repeatability: ≤ 0.2% • Output: 8 A SPDT or 8 A DPDT relay • For mounting on DIN-rail in accordance with DIN/EN 50 022 or Plug-in • 22.5 mm Euronorm or 36 mm Plug-in module housing • Combined AC and DC power supply • LED indication for power supply ON DBB02 PBB02 Product Description Ordering keyDBB 02 C M24 Multivoltagetrue delay on release timer with 3 time ranges from 60 s to 10 h selectable by DIP-switches. Thebuilt-in battery(NiCd) willbechargedwhilethe power supply is applied. For mounting on DIN-rail (DBB02) or Plug-in (PBB02). Housing Function Type Item number Output Power Supply Type Selection MountingOutputHousingSupply: 24 to 240 VAC/DC For DIN-railSPDTD - Housing DBB 02 C M24 DPDTD - Housing DBB 02 D M24 Plug-in SPDTP - HousingPBB 02 C M24 DPDTP - HousingPBB 02 D M24 TimeSpecifications Time ranges Selectable by DIP-switches 60to600 s 0.1 to1 h 1to10 h Repeatability ≤ 0.2% Time variation Within rated battery voltage ≤ 1% Within rated power supply ≤ 0.05% Within ambient temperature ≤ 0.2% ResetPower supply applied for min. 200 ms Output Specifications OutputSPDT or DPDT relay Rated insulation voltage250 VAC (RMS) Contact Ratings(AgNi) µ Resistive loadsAC 1 8 A @250 VAC DC 12 5 A @24 VDC Small inductive loadsAC 15 2.5 A@250 VAC DC 13 2.5 A@24 VDC Mechanical life≥ 2 x 106operations Electrical lifeAC 1 ≥ 105operations (at 8 A, 250 V, cos ϕ = 1) Operating frequency< 3600 operations / h Dielectric strength Dielectric voltage2 kVAC (RMS) Rated impulse withstand voltage4 kV (1.2/50∝s) Supply Specifications Power supplyOvervoltage cat. III Rated operational voltage(IEC 60664, IEC 60038) through terminals: (DBB02) A1, A2 24 to 240 VAC/DC (PBB02)2, 10 +10% -15%, 45 to 65 Hz Voltage interruption≤ 40 ms Rated operational power AC supply: 3.7 VA DC supply: 1.3 W Built-in battery for time function Nominal voltage4.8 VDC Min./max. battery voltage 4.2 VDC/6.2 VDC Charging current 2 mA Discharging current0.5 mA Capacity 80 mA/h Specifications are subject to change without notice (15.04.10)1

Discover the superior quality and performance of the Carlo Gavazzi DBB02CM24 with RADWARD LTD in United Kingdom . Whether you are looking for reliability or efficiency, this product meets all your industrial needs.

The DBB02CM24 is designed to provide optimal performance and durability in various applications. Known for its high-quality construction and innovative features, it is a preferred choice for professionals.

Key Features of DBB02CM24 :

High Performance: Engineered to deliver exceptional results.
Durable Construction: Built with high-quality materials for long-lasting use.
Innovative Design: Incorporates the latest technology for enhanced efficiency.
Cost-Effective: Offers great value for money with competitive pricing.

At RADWARD LTD , we offer the DBB02CM24 at competitive prices and with the fastest delivery times across United Kingdom . Our expert team is ready to assist you with all your inquiries and provide tailored solutions to meet your specific needs.

Why Choose RADWARD LTD ?

Expert Assistance: Get help from our knowledgeable team for all your product-related questions.
Competitive Prices: We offer some of the best prices in the market.
Fast Delivery: Benefit from our efficient delivery network for quick turnaround times.
Customer Satisfaction: Our commitment to customer service ensures a great buying experience.

Get Your Quote Today! Ready to enhance your operations with the DBB02CM24 ? Contact us now for a personalized quote. Fill out the form below or send us an email with your inquiry. Let us help you make a cost-effective, quality-driven choice for your business.

Important Notice: While we supply Carlo Gavazzi products, RADWARD LTD is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
