| BRAND | HOLTHAUSEN ELEKTRONIK |

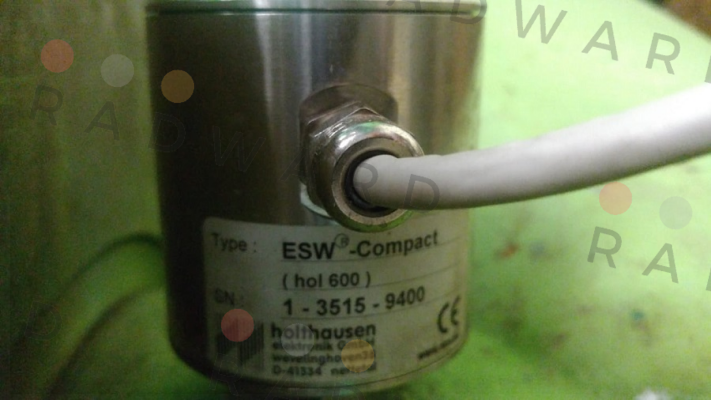

| Product | ESW®- Compact 001 |
| Description | Electronic vibration monitor |
| Internal code | 1838602 |
| Weight | 1.2 |
| Custom code | 90318080 |
| Technical specification | Operating voltage 24V DC 5% Current consumption max. 100mA Temperature range 0 to 65°C Protection class IP 68 Stainless steel housing 1.4571/1.4404 Case dimensions 94x70 (h x Ø) Tightening torque max. 30 Nm, power transmission only via hexagon Weight approx. 1.0 kg (without cable), approx. 1.2 kg (with cable) Plexiglass inspection glass DIN 4102 IB2, s = 5mm Connection cable 2m, SD 90 C/ Kaweflex 6430 SK-C, 7 x 0.34mm², shielded, jacket material: PUR/PUR, min. bending radius: 50.25 mm/53.25 mm Cable fitting M16x1.5, CuZn39Pb3 brass, nickel-plated Lamellar insert: polyamide PA6 V-2 Sealing ring: CR/NBR polychloroprene nitrile rubber O-ring: nitrile rubber NBR Sensor integrated acceleration sensor Measurement variable Vibration Velocity in mm/s Measurement range 0 to 10/0 to 20/0 to 50mm/s, switchable RMS signal evaluation Frequency range 10Hz to 1kHz (-3dB) Butterworth filter, 60dB/dek or 18dB/oct Analog output 0 to 20mA or 4 to 20mA power source proportional to the set measurement range Load resistance max. 390ohm Switching outputs two potential-free switching contacts (30V, 1A) switching thresholds 10% to 100% of the measurement range, adjustable via potentiometer in the housing Response delay K 1 = 10s, K 2 = 5s Waste delay K 1 = 0.5s, K2 = 0.5s Line monitoring During normal operation, the relays are energized and the switching contacts are closed. In case of alarm, loss of voltage or if the cable breaks, the relays fall back into their rest position. Cable layout pink +Ub blue Dimensions yellow closer K1 green center contact K1 white closer K2 brown center contact K2 grey analog output Optional threaded pin, M8x25mm, V4A |
Discover the superior quality and performance of the HOLTHAUSEN ELEKTRONIK ESW®- Compact 001 with RADWARD LTD in United Kingdom . Whether you are looking for reliability or efficiency, this product meets all your industrial needs.
The ESW®- Compact 001 is designed to provide optimal performance and durability in various applications. Known for its high-quality construction and innovative features, it is a preferred choice for professionals.
Key Features of ESW®- Compact 001 :
At RADWARD LTD , we offer the ESW®- Compact 001 at competitive prices and with the fastest delivery times across United Kingdom . Our expert team is ready to assist you with all your inquiries and provide tailored solutions to meet your specific needs.
Why Choose RADWARD LTD ?
Get Your Quote Today! Ready to enhance your operations with the ESW®- Compact 001 ? Contact us now for a personalized quote. Fill out the form below or send us an email with your inquiry. Let us help you make a cost-effective, quality-driven choice for your business.
Important Notice: While we supply HOLTHAUSEN ELEKTRONIK products, RADWARD LTD is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
