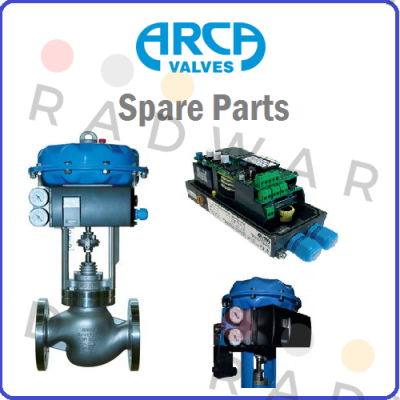

BRAND | ARCA |
Product | F1.CW.101 - FCV.06 |
Description | Actuator |
Internal code | 4895203 |
Technical specification | Usage: LANCE COOLING Medium: COOLING WATER QV-max (Nm3/h): 190,0000 P1 at Q max (bar a): 11,000 P2 at Q max (bar a): 9,000 T1 at Q max (°C): 40,000 QV-min (Nm3/h): 20,0000 P1 at Q min (bar a): 11,000 P2 at Q min (bar a): 3,000 T1 at Q min (°C): 40,000 Valve painting instruction: C2M multi-layer A2.06 Valve finish: RAL5015-sky blue Drive painting instruction: C2M twin/single powders Engine paint: RAL5015-sky blue Type plate 2: English Units type plate: bar, Kv, °C, mm Piping material: stainless steel Piping diameter: 10 mm pipe Screw connections material: galvanised steel Fittings Manufacturer: Standard Design in accordance with PED: yes Medium classification: Group 2 liquid PD<0.5bar Classification: Pressure-maintaining equipment Classification Category: I Design in accordance with: DIN EN 16668 ATEX: no MRL valve: complete machine Acceptance key: AS 01-3.1 Material evidence: APZ 3.1 Acceptance test certificate: APZ 3.1 not Hyg Test medium external tightness: water Seat tightness test medium: water Seat leakage tested according to: EN12266/EN1349 (Arca factory standard) PT pressure sample (bar g) input: 24 PT pressure sample (bar g) output: 24 Flow direction FIG.: 0.1 (flow versus closing) CTRL/handwheel control side: 0.1/L-R/6 dp (bar) in Ström. -Direction: 12 includes the following items: R-Vent DN125PN16 Type 6N1 GS-C25 3142763 84818059 Type 6N1-L1 (W4) Single-seat control valve DN 125 PN 16 Standard cover flange Connection on both sides: EN sealing strip form B1 Installation length: 400 mm Case Material: 1.0619 Cone Material: 1.4122 Seat material: 1.4021 nitrided 1-pc hole cone, kvs 150 characteristic =% Seat Ø 113 mm Class IV leakage Packing: 6226/6232 pneumatic. Antr. 812 MFIII-60.12-ATO 2180266 Type 812 MFIII-60.12-OE pneumatic. Stroke 60mm variable drive, function: ATO Spring actuation force of 14KN required air flow of 4.3 bar Membrane area: 720cm² 12 springs adjustment range 2.0-4.3 bar Version B tube reversible air flow M20x1.5 connection thread, diameter 72 mm Function: air opens - spring closes ST controller 827A.E2-A00-M10-G 2257107 Type 827A.E2-A00-M10-G Intelligent positioner Input 4-20mA, 2-wire connection IP 66 metal housing simple-looking with analog module, sensor 4 to 20 mA M20x1.5 cable outlet G 1/4 air connection 3121443 Hub indicator spindle coupling M20x1.5/M18x1.5 new version clamp design 2214650 Built-in positioner 827/812A POSITIONER MOUNTING KIT. Type 827 to 812 MFIII--60, integrated 2242329 F&R 961 1/4" NPT Mano 0-6 MS Poly Type 961 1/4" NPT filter and reducer Housing in aluminum, external parts in stainless steel Filter material: nylon fiber fabric 5 ìm Inlet: 1.4 to 18 bar g (250 psi) Output: adjustable 0 to 6 bar g with pressure gauge 0 to 6 bar/0-86 psi/MS/plastic Double nipple VA |
Discover the superior quality and performance of the ARCA F1.CW.101 - FCV.06 with RADWARD LTD in United Kingdom . Whether you are looking for reliability or efficiency, this product meets all your industrial needs.
The F1.CW.101 - FCV.06 is designed to provide optimal performance and durability in various applications. Known for its high-quality construction and innovative features, it is a preferred choice for professionals.
Key Features of F1.CW.101 - FCV.06 :
At RADWARD LTD , we offer the F1.CW.101 - FCV.06 at competitive prices and with the fastest delivery times across United Kingdom . Our expert team is ready to assist you with all your inquiries and provide tailored solutions to meet your specific needs.
Why Choose RADWARD LTD ?
Get Your Quote Today! Ready to enhance your operations with the F1.CW.101 - FCV.06 ? Contact us now for a personalized quote. Fill out the form below or send us an email with your inquiry. Let us help you make a cost-effective, quality-driven choice for your business.
Important Notice: While we supply ARCA products, RADWARD LTD is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
