BRAND | POMPE CUCCHI SRL |
Product | FG10/C - S/N 61912 |
Description | pump |
Internal code | 4675839 |
Custom code | 84136020 |

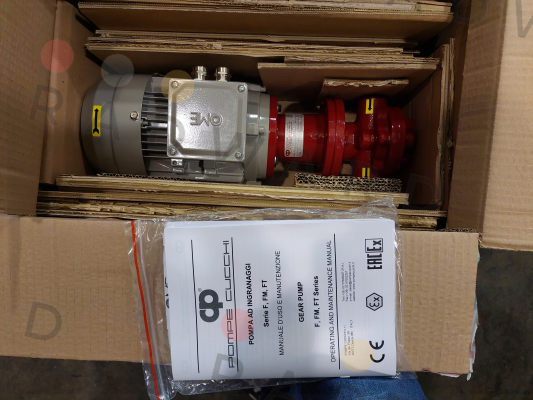

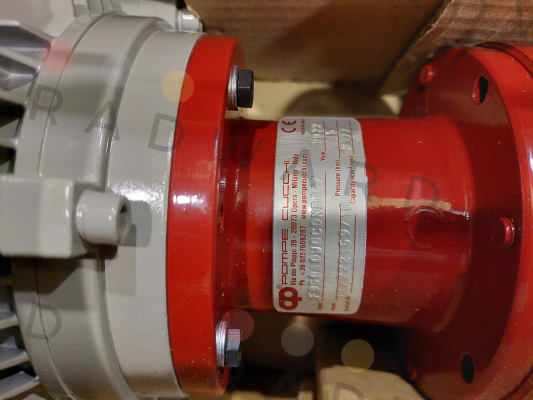

Technical specification | Gear pump with 0.75 kW 4-pole 400/3/50 motor IP55 B3/B14 Pump type F0G010W0CDNB007 NR 1 G25 cast iron body and lid CERAMIC/GRAPHITE/FPM mechanical seal 18 NCD5 hardened carbon steel shafts and C45 steel gears DU sintered support bushings Pump with lantern and elastic joint for motor shape B3/B14 Size 80 Counterclockwise direction of rotation (motor-side view) Motor power 0.75 kW 4 poles 400/3/50 IP55 B3/B14 Standard elastic joint Flow rate 10 Lt/min Suction pressure 0 BAR Delivery pressure 15 BAR Differential pressure 15 BAR Horizontal mouth orientation 3/4" BSP connections Rotational speed 1450 rpm RAL 3003 red pump paint |
Discover the superior quality and performance of the POMPE CUCCHI SRL FG10/C - S/N 61912 with RADWARD LTD in United Kingdom . Whether you are looking for reliability or efficiency, this product meets all your industrial needs.
The FG10/C - S/N 61912 is designed to provide optimal performance and durability in various applications. Known for its high-quality construction and innovative features, it is a preferred choice for professionals.
Key Features of FG10/C - S/N 61912 :
At RADWARD LTD , we offer the FG10/C - S/N 61912 at competitive prices and with the fastest delivery times across United Kingdom . Our expert team is ready to assist you with all your inquiries and provide tailored solutions to meet your specific needs.
Why Choose RADWARD LTD ?
Get Your Quote Today! Ready to enhance your operations with the FG10/C - S/N 61912 ? Contact us now for a personalized quote. Fill out the form below or send us an email with your inquiry. Let us help you make a cost-effective, quality-driven choice for your business.
Important Notice: While we supply POMPE CUCCHI SRL products, RADWARD LTD is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
Conductor pinion
Conical container O-ring
Mechanical seal static 23 - dynamic 22
Mechanical O-ring seal
Pump body flat gasket
Bypass valve body O-ring
Premitreccia
Drive gear
Driven gear
Bypass adjustment screw checked gasket
FLANGES O-RING
GRAPHITE BUSH
GRAPHITE BUSH
SAE FLANGES
RING 4150 VITON
DRIVING GEAR
SOCKET SCREW
COMPLETE MECHANICAL SEAL
DRIVEN SHAFT
DRIVING SHAFT
Gear pump
pump
PLASTIC DRIVEN GEAR
ORING 3200 VITON
pump
Pump
Regulating screw for FM65/WECOBOO
Regulating screw
