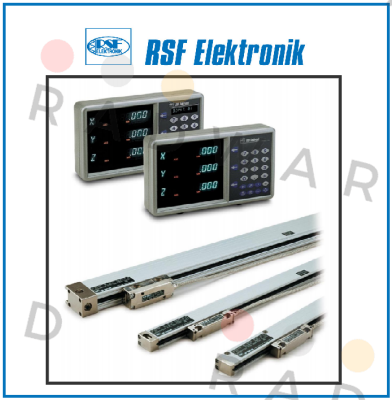

| BRAND | Rsf Elektronik |
| Product | MSA771 |
| Internal code | 4772994 |
| Technical specification | Measuring length: 1140 mm Accuracy grade: ± 5.0 μm Grating period: 20.000 μm Output signal: Square-wave signals, TTL levels with 25-fold interpolation Reference mark position: 20 mm (Distance in mm from the beginning of the measuring length) Further reference marks: every 50 mm from the first Seal type: non-closing, friction-reduced sealing lip Minimum edge separation: 0.200 μs Fault detection signal: OS Reference pulse width: 90 ° Limit switch: without Connecting direction: Cable outlet right Cable length: 0.10 m Electrical connection: D-sub connector, metalized plastic housing, 2-row, with locking screws, male, 9-pin Pin configuration: D896604 Cable type: PUR Ø 4.3 mm |
Discover the superior quality and performance of the Rsf Elektronik MSA771 with RADWARD LTD in United Kingdom . Whether you are looking for reliability or efficiency, this product meets all your industrial needs.
The MSA771 is designed to provide optimal performance and durability in various applications. Known for its high-quality construction and innovative features, it is a preferred choice for professionals.
Key Features of MSA771 :
At RADWARD LTD , we offer the MSA771 at competitive prices and with the fastest delivery times across United Kingdom . Our expert team is ready to assist you with all your inquiries and provide tailored solutions to meet your specific needs.
Why Choose RADWARD LTD ?
Get Your Quote Today! Ready to enhance your operations with the MSA771 ? Contact us now for a personalized quote. Fill out the form below or send us an email with your inquiry. Let us help you make a cost-effective, quality-driven choice for your business.
Important Notice: While we supply Rsf Elektronik products, RADWARD LTD is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
MEßSYSTEM MSA 650.24 (CODE : C0T460212229)
measuring system MSA 650.24 interval 40 microns Accuracy ± 10 microns / m RI 02: center of the gauge length Supply: +12 V Output: rechteckf. Signals 12 V CC 122: K1, 3 m Metallgefl cable, plug L70. measuring length 520 mm
Measuring system
Scanning MS50.66 (ID: 43854030) Interval 200 microns, 5-fold with reference mark Supply: +5 V Output: rechteckf. Signals via Line Driver 5 V CC A88: 9 m cables, connectors L120 RSF art. No. LH46001A8800
head MS lt 50.76 M. Datasheet D279B interval 200 microns, 10-fold without reference mark Supply: +5 V Output: rechteckf. Signals via Line Driver 5 V CC E17: 1.3 m cables, connectors KD9 occupancy lt Z:. 44 729 B
ruler
(Encoder,grating pitch 20 µm; accuracy ±10 µm/m; RI 02: center of the measuring length; supply: +5 V; output: square wave signals 5 V; CC 122: K1, 3 m cable with braiding, conn. L70; measuring length 720 mm;)
Incremental length measurement system
MSA 650.63 (Art.Nr.: C0436G501405)
Incremental length measuring system MSA650.63
ML 920mm R102 Interval 20 microns Accuracy ± 5 microns / m
(Signals rechteckf 5 V CC 049: measurement system, interval 20 microns; Accuracy ± 10 microns / m; without reference mark;:; +5 V supply output. K1, 2 m cables, connectors L70; gauge length 72 mm)
(Signals rechteckf 5 V CC 054: measurement system, interval 20 microns; Accuracy ± 10 microns / m; without reference mark;:; +5 V supply output. K2, 2 m cables, connectors L70; gauge length 152 mm)
(Measuring system, interval 20 microns, 5-fold; Accuracy ± 5 microns / m; RI 02: center of the gauge length; Supply: +5 V; output: 5V rechteckf signals; CC. 269: K1, 2.3 m cable, plug L70; gauge length 122 mm)
Measuring system - · interval 10 microns; · Accuracy ± 2 microns / m; · RI 07: 35 mm from left and right; · Supply: +5 V; · Output: Sinusoidal. 7-16 .mu.Ass signals; · CC 613: K1, 4 m cables, connectors L91; · Measuring length 270 mm;
Enclosed Linear Encoder
ENCLOSED LINEER ENCODER
Incremental length measurement system
L=555 mm S=0,02 mm ruler
digital read out for lathe 400mm – x,1500mm - y
Linear encoder
MSA 670.63 (Art. Nr. B043500C6625)
Meßsystem
