| BRAND | Nuova Fima |

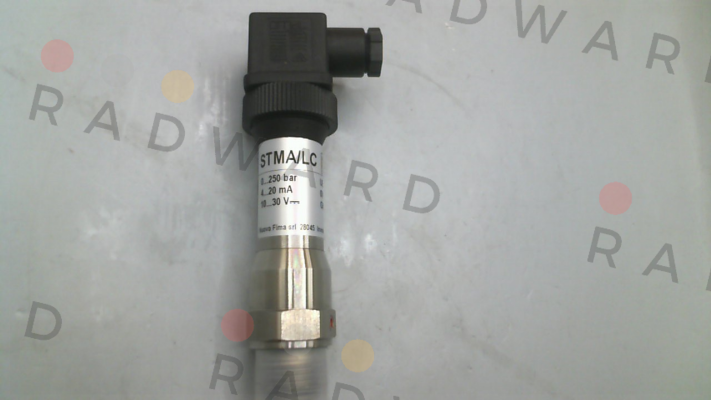

| Product | MODEL STMA/LC (DMU-S-D-001277) |
| Description | Pressure Sensor |
| Internal code | 4350973 |
| Custom code | 90268020 |
| Technical specification | 8.SMA---.AAFV.41M.1.FPM PRESSURE TRANSMITTER WITH FLUSH DIAPHRAGM, MODEL STMA/LC. 22 MM HOUSING DIAMETER. CERAMIC TRANSDUCING CELL, ST ST. AISI 316L SOCKET AND DIAPHRAGM. DIRECT MOUNTING BOTTOM CONNECTION RANGE 0...250 BAR 1/2" BSP MALE PROCESS CONNECTION 4...20 mA OUTPUT SIGNAL. 2 WIRE CONNECTION ELECTRICAL CONNECTION AS PER EN175301-803 - IP65 PROTECTION DEGREE VITON (FKM) SEAL GASKET ACCURACY ± 0,5% OF THE RANGE |
Discover the superior quality and performance of the Nuova Fima MODEL STMA/LC (DMU-S-D-001277) with RADWARD LTD in United Kingdom . Whether you are looking for reliability or efficiency, this product meets all your industrial needs.
The MODEL STMA/LC (DMU-S-D-001277) is designed to provide optimal performance and durability in various applications. Known for its high-quality construction and innovative features, it is a preferred choice for professionals.
Key Features of MODEL STMA/LC (DMU-S-D-001277) :
At RADWARD LTD , we offer the MODEL STMA/LC (DMU-S-D-001277) at competitive prices and with the fastest delivery times across United Kingdom . Our expert team is ready to assist you with all your inquiries and provide tailored solutions to meet your specific needs.
Why Choose RADWARD LTD ?
Get Your Quote Today! Ready to enhance your operations with the MODEL STMA/LC (DMU-S-D-001277) ? Contact us now for a personalized quote. Fill out the form below or send us an email with your inquiry. Let us help you make a cost-effective, quality-driven choice for your business.
Important Notice: While we supply Nuova Fima products, RADWARD LTD is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
Pressure gauge Type: 01.18.2.A.E.43M.P01 Execution: all st.st. bourdon tube pressure gauge, MGS18/2/A/E fillable with silicone oil Mounting: direct Diameter: DN 100 Connection: 1/2" NPT male bottom Range: 0-250 bar Case material: bayonet-lock case in st.st. AISI 304 Window material: glass Accuracy: 1,0
Pressure gauge Type: 01.18.2.D.E.43M.P01 Execution: all st.st. bourdon tube pressure gauge, MGS18/2/D/E fillable with silicone oil Mounting: direct Diameter: DN 100 Connection: 1/2" NPT male back Range: 0-250 bar Case material: bayonet-lock case in st.st. AISI 304 Window material: glass Accuracy: 1,0
Pressure gauge Type: 1.18.2.A.G.41M Execution: all st.st. bourdon tube pressure gauge fillable Mounting: direct diameter: DN 150 Connection: 1/2" BSP male bottom Range: 0-16 bar Case material: bayonet-lock case in st.st. AISI 304 window material: glass accuracy: Kl.1,0 , Statistische Warennummer: 90262040
Digital Portable Manometer Series 2000 Type 2028P (Extended Version) For Pressure, Vacuum and Differential pressure Battery operated Hand-Held with LCD-Display Range: 0-1 bar (max. Overrange 2 bar) Display range: 0,0-199,9 mbar and 0-1000 mbar Accuracy: 0,15% rdg + 0,15% FSO +1digit Switchable to Pa, inH2O, mH2O, inHg, mHG, PSI (Display range acc. to data-sheet) Pressure ports: 2 x tube connection for tube 4 mm inner diam. / 6 mm outer diam. Display Backlight (switchable) Zero setting by keypress HOLD-Function Automatic Switch of the Display resolution can be deactivated MAX/MIN Memory Number of pushbuttoms: 8 Protection: IP 67 (with connected tubes) Battery Type: 2 x AA, 1,5 V (not included in delivery)
Pressure gauge Type: 01.20.3.A.G.ABFD.41M.L02 Execution: All st.st. bourdon tube pressure gauge, SOLID FRONT, Glycerine filled Mounting: direct Diameter: DN 150 Connection: 1/2" BSP male in st.st. AISI 316 L Range: 0-15 psi Case material: bayonet-lock case in st.st. AISI 304 Window material: safety glass Accuracy: Kl. 1.0 with adjustable pointer
pressure switch
00020 201071825 GAUGE:PRESS;0-10KG/CM2,1/8IN,NPT,2-1/2IN GAUGE: PRESSURE RANGE: 0-10 KILOGRAM PER SQUARE CENTIMETER CONNECTION SIZE: 1/8 IN CONNECTION: NATIONAL PIPE THREAD FACE SIZE: 2-1/2 IN CONNECTION LOCATION: LOWER MANUFACTURER: NUOVA FIMA MODEL NUMBER: 52240251060000 *PHOTOS ATTACHED* 00030 201090588 TRANSDUCER:ELECTRO PNEUMATIC,4 TO 20MA,%
TEMPERATURE GAUGE, RANGE 0-160C, APPLICABLE SERIAL NO 2758/02
TEMPERATURE GAUGE, RANGE 0-200C, APPLICABLE SERIAL NO 2758/06
thermostat
(Test and conformity of 3.1 NUOVA FIM)
DDM-DM-D-DIVERS 02.16.1.A.G.0/600 mbar.43M.C.S31.R10
Statistische Warennummer: 90262040 Differential pressure gauge Type: 02.16.1.A.G.0/600 mbar.43M.C.S31.R10 Execution: with double diaphragm Mounting:direct or with back flange diameter: DN 150 Lower Connections: 1/2" NPT male in st.st. AISI 316L Range: 0- 600 mbar static pressure: max. 100 bar Case material: bayonet-lock case in st.st. AISI 304 window material: glass case filling: glycerine 2" Stackes bracket accuracy: Kl. 2,5 %
Commodity Code: 90268020 Type Pressure transmitters: 08.S18 NUOVA FIMA Code: 08.S18-0 / 40 bar-23M-1 Measurement range: 4-20 mA 2 wire Power: 0-40 bar output 8-30 VDC accuracy: 0 , 5% FSO IEC 60770 Process connection .: 1/4 NPT male thread Electrical connection:. connector DIN 43650 IP 65
DMU-S-D-001009 08.S18 08 / S18 AAFE = 0-16 BAR 23M 1 = OUTPUT: 4...20 MA- 2 WIRES , SUPPLY: 8...30
Pressure sensor Execution: pressure sensor with ceramic cell
Pressure sensor Type: 08.S18 Execution: pressure sensor with ceramic cell Accuracy: 0,5% F.S.V acc. to IEC 60770-Limit point Electrical connection: Male and female plug DIN 43650 Specification Code acc. to Data-sheet 08 = Electronics S18 = Pressure transmitter 0-600 bar = range 43M = process connection: 1/2 NPT male 10E = output: 4-20 mA, 2 wire / supply: 10..30 VDC Please check the process connection and output. It was not specified in the inquiry.
Statistische Warennummer: 90262040 Pressure transmitter with local readout for homogenizer Type: 08.MOM.3.A.E.AAFZ (0...400 bar).422.1. Filling liquid: dielectric oil Mounting: direct, bottom connection Dial diameter: 100 mm Process connection: SA422 Range: 0-400 bar case in st.st. AISI 304 glass window Output: 4-20 mA Power Supply: 10...30Vcc with logo "NUOVA FIMA" and "LR"
Pressure gauge Type: 1.20.3.A.E.41M. Execution: all st.st. bourdon tube pressure gauge Solid front execution, glycerine filled Mounting:direct dial diameter: DN 100 Range: 0-16 bar Case material: bayonet-lock case in st.st. AISI 304 window material: safety glass accuracy: Kl. 1,0 with diaphragm seal MGS 9/2B 4.2B0.9.9.43F.41F.BAI diaphragm in Hastelloy C276 process connecion in Hastelloy C276 process connection: 1/2" NPT female
(Pressure transmitter with local readout for homogenizer Mounting: direct, bottom connection Dial diameter: 100 mm Process connection: SA167 Range: 0-600 bar case in st.st. AISI 304 glass window Output: 4-20 mA Power Supply: 10...30Vcc with calibration certificate (C01))
CAMERA
Statistische Warennummer: 90262040 Pressure gauge Type: 01.27.1.A.I Execution: Laboratory bourdon tube test gauge Mounting: direct Diameter: DN 250 (10") Connection: 1/2 NPT male bottom in st.st. AISI 316 Range: 0-40 bar Case material: Aluminium, black coated External zero-adjustment High precision movement mounted on ball bearing Dial: Anti-parallax mirror Pointer: balanced, antiparallax knife-edge micrometer, adjustable Window material: Plexiglas Accuracy: Kl. 0,1 Specials: factory test certificat, traceable to international Standard
range 0-250 bar
(version "all stainless steel": DN 63) 1.18.3.DC0/16 BAR.21M
(Pressure gauge Type: 01.M2.3-D-E-0/400 bar-41M-04D.BM2.E Execution: all st.st. bourdon tube pressure gauge MCE18/3/E oil filled with double electric contact Mounting: with front flange diameter: DN 100 Connection: 1/2" BSP back in st.st. AISI 316L Range: 0-400 bar Case material: bayonet-lock case in st.st. AISI 304 window material: Plexiglas contacts: First contact opening, second contact opening on rising pressure, magnetic snap action)
