BRAND | Tapflo |

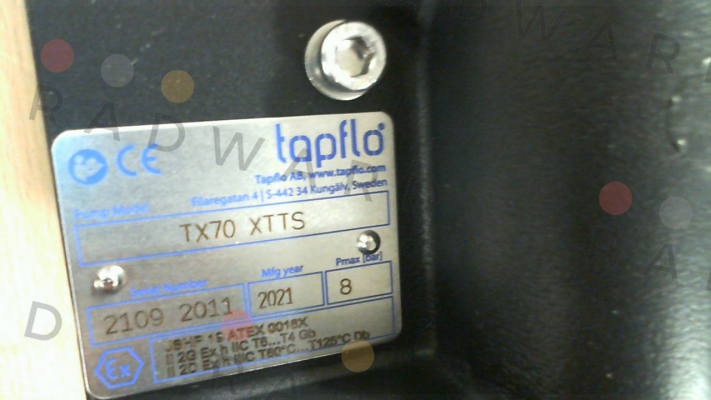

Product | TX70XTTS |
Description | pump |
Internal code | 4030735 |
Technical specification | Tapflo® compressed air diaphragm pump Type TX70XTTS ATEX certified, housing: Aluminum PTFE coated, Connections: stainless steel Technical description: Max. Delivery rate 70 l / min (with water) Max. Delivery pressure 8 bar with 8 bar compressed air Suction height dry / filled 3 mWS / 8 mWS Max. Solid size 4 mm Max. Temperature range -20ºC ... + 110 ° C Housing parts in contact with the product aluminum, PTFE-coated PTFE membranes Valve balls PTFE Stainless steel connector (polished) Suction / pressure connection 3/4 "internal thread (DN 20) |
Discover the superior quality and performance of the Tapflo TX70XTTS with RADWARD LTD in United Kingdom . Whether you are looking for reliability or efficiency, this product meets all your industrial needs.
The TX70XTTS is designed to provide optimal performance and durability in various applications. Known for its high-quality construction and innovative features, it is a preferred choice for professionals.
Key Features of TX70XTTS :
At RADWARD LTD , we offer the TX70XTTS at competitive prices and with the fastest delivery times across United Kingdom . Our expert team is ready to assist you with all your inquiries and provide tailored solutions to meet your specific needs.
Why Choose RADWARD LTD ?
Get Your Quote Today! Ready to enhance your operations with the TX70XTTS ? Contact us now for a personalized quote. Fill out the form below or send us an email with your inquiry. Let us help you make a cost-effective, quality-driven choice for your business.
Important Notice: While we supply Tapflo products, RADWARD LTD is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
Impeller (90)ø 125 mm AISI 316LCTI CC
(Mechanical seal completely (15) Ceramic / graphite / FKM CTI C ../ D ../ E ..)
Tapflo® Hygienic Centrifugal Pump Type CTHAA-03 Max. Flow 7 m³ / h Max. Discharge pressure 2.7 mWS Max. System pressure 9.5 bar Suction lift not self Max. Temperature 90 ° C Product wetted housing parts 316L stainless steel electro-polished Ra <0.8 microns Impeller stainless steel 316L electro-polished Ra <0.8 microns Lantern AISI 316L Mechanical seal single acting: Ceramic / graphite / EPDM (FDA) Housing O-Ring EPDM (FDA) Suction dairy fitting DIN 11851 DN 25 Pressure connection dairy fitting DIN 11851 DN 25 Drive: 230/400 V, 50 Hz, 0.37 kW, IP 55 Speed 2900 r / min at 50 Hz
Pneumatic diaphragm pump housing: AISI 316L polished Membrane: PTFE valve balls AISI316 Connection: dairy pipe DIN 11851 DN40 01 1.00 pcs T125STS- 3x40 Capacity: Max. 125 l / min Pressure: max. 7 bar Product contact housing parts: 1.4404 (SS 316 L), polished Membranes: PTFE / EPDM, FDA approved Valve balls: AISI316L Suction and pressure connection: dairy pipe DIN 11851 DN40 Max. Operating temperature: 100 ° C, rapid CIP / SIP 125 ° C Max. Solid Size: 6 mm
