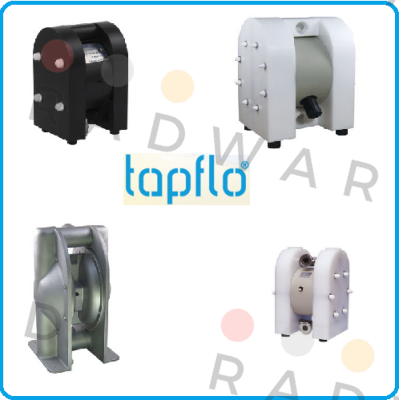

BRAND | Tapflo |
Product | TY50PTT |
Description | Air Diaphragm |
Internal code | 4176361 |
Technical specification | Increased suction height Max. flow rate 60 l/min (for water) Max. discharge pressure 8 bar at 8 bar compressed air Suction height dry/filled 4 mWs/8 mWs (guided valve balls) Max. solids size 4 mm Media hydrogen peroxide < 35% Potassium hydroxide < 30% Nitric acid < 30% Phosphoric acid < 25% Max. temperature range 0ºC... +20°C Wetted housing parts PE, solid Membranes PTFE Valve balls PTFE Suction and pressure connection 1/2" internal thread (DN 15), rotatable For air consumption see the flow curve Box contents: Pump including silencer and rubber feet |
Discover the superior quality and performance of the Tapflo TY50PTT with RADWARD LTD in United Kingdom . Whether you are looking for reliability or efficiency, this product meets all your industrial needs.
The TY50PTT is designed to provide optimal performance and durability in various applications. Known for its high-quality construction and innovative features, it is a preferred choice for professionals.
Key Features of TY50PTT :
At RADWARD LTD , we offer the TY50PTT at competitive prices and with the fastest delivery times across United Kingdom . Our expert team is ready to assist you with all your inquiries and provide tailored solutions to meet your specific needs.
Why Choose RADWARD LTD ?
Get Your Quote Today! Ready to enhance your operations with the TY50PTT ? Contact us now for a personalized quote. Fill out the form below or send us an email with your inquiry. Let us help you make a cost-effective, quality-driven choice for your business.
Important Notice: While we supply Tapflo products, RADWARD LTD is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
Tapflo® Hygienic Centrifugal Pump Type CTHAA-03 Max. Flow 7 m³ / h Max. Discharge pressure 2.7 mWS Max. System pressure 9.5 bar Suction lift not self Max. Temperature 90 ° C Product wetted housing parts 316L stainless steel electro-polished Ra <0.8 microns Impeller stainless steel 316L electro-polished Ra <0.8 microns Lantern AISI 316L Mechanical seal single acting: Ceramic / graphite / EPDM (FDA) Housing O-Ring EPDM (FDA) Suction dairy fitting DIN 11851 DN 25 Pressure connection dairy fitting DIN 11851 DN 25 Drive: 230/400 V, 50 Hz, 0.37 kW, IP 55 Speed 2900 r / min at 50 Hz
Pneumatic diaphragm pump housing: AISI 316L polished Membrane: PTFE valve balls AISI316 Connection: dairy pipe DIN 11851 DN40 01 1.00 pcs T125STS- 3x40 Capacity: Max. 125 l / min Pressure: max. 7 bar Product contact housing parts: 1.4404 (SS 316 L), polished Membranes: PTFE / EPDM, FDA approved Valve balls: AISI316L Suction and pressure connection: dairy pipe DIN 11851 DN40 Max. Operating temperature: 100 ° C, rapid CIP / SIP 125 ° C Max. Solid Size: 6 mm
