BRAND | HOLTHAUSEN ELEKTRONIK |

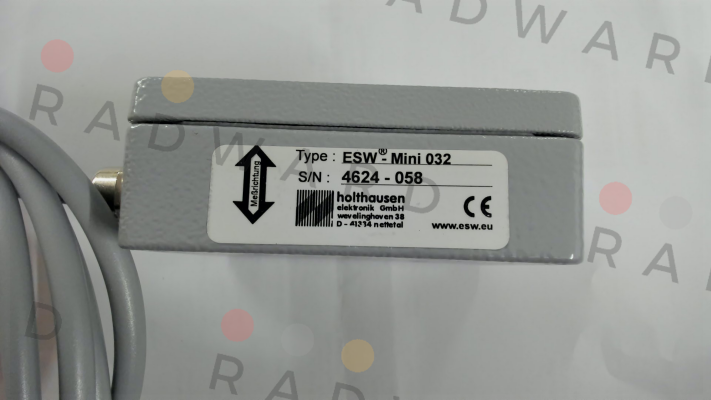

Product | ESW®-Mini 032 (hol 550) |
Internal code | 4696212 |
Custom code | 90318080 |
Technical specification | Electronic vibration monitor Operating voltage 24V DC 10% Current consumption max. 45mA Temperature range 0°C to 65°C Protection class IP 65 Die-cast aluminum housing (AlSi12), powder-coated (RAL 7001) Neoprene cover gasket Case dimensions 98 x 34 x 64mm (W x H x D) Weight approx. 400 g (without cable), approx. 560g (with cable) Connection cable 2m, SD 90 C/Kaweflex 6430 SK-C, 7 x 0.34mm², on the device side firmly connected, suitable for outdoor use and oily environment, jacket material: PUR/PUR, min. bending radius: 50.25mm/53.25mm Cable fitting M16x1.5, CuZn39Pb3 brass, nickel-plated Lamellar insert: polyamide PA6 V-2 Sealing ring: CR/NBR polychloroprene nitrile rubber O-ring: nitrile rubber NBR Sensor integrated acceleration sensor Input variable oscillation acceleration Measurement variable Vibration Velocity in mm/s Measurement range 0 to 50mm/s Arithm signal weighting Mean value, adjusted to RMS Frequency range 10Hz to 1kHz (-3dB) Butterworth filter, 40dB/dek or 12dB/oct analog output 4 to 20mA, constant current, proportional to the measurement range Load resistance max. 500 ohms Switching output potential-free switching contact (30V, 1A) Switching threshold 10% to 100% of the measurement range, adjustable in 10% steps via rotary switches in the housing Switching delay response delay 3s fixed Waste delay 0.5s fixed Line monitoring During normal operation, the relay is energized, the switching contact is closed. In case of alarm, loss of voltage or If the cable breaks, the relay falls back into its rest position. Cable layout pink +Ub blue Dimensions brown opener yellow closer green center contact grey analog output white analog mass Screen on case, not connected to ground Optional threaded pin M8x25mm, V4A |
Discover the superior quality and performance of the HOLTHAUSEN ELEKTRONIK ESW®-Mini 032 (hol 550) with RADWARD LTD in United Kingdom . Whether you are looking for reliability or efficiency, this product meets all your industrial needs.
The ESW®-Mini 032 (hol 550) is designed to provide optimal performance and durability in various applications. Known for its high-quality construction and innovative features, it is a preferred choice for professionals.
Key Features of ESW®-Mini 032 (hol 550) :
At RADWARD LTD , we offer the ESW®-Mini 032 (hol 550) at competitive prices and with the fastest delivery times across United Kingdom . Our expert team is ready to assist you with all your inquiries and provide tailored solutions to meet your specific needs.
Why Choose RADWARD LTD ?
Get Your Quote Today! Ready to enhance your operations with the ESW®-Mini 032 (hol 550) ? Contact us now for a personalized quote. Fill out the form below or send us an email with your inquiry. Let us help you make a cost-effective, quality-driven choice for your business.
Important Notice: While we supply HOLTHAUSEN ELEKTRONIK products, RADWARD LTD is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
